When choosing between SMT Assembly Services and THT Get together for your electronic fabricating ventures, understanding the principal contrasts gets to be significant for generation victory. Surface Mount Innovation offers prevalent proficiency through mechanized chip situation and diminished get together time, whereas Through-Hole Innovation gives improved mechanical quality for high-stress applications. Taken a toll contemplations favor SMT for high-volume generation due to littler component sizes and computerized gathering forms, while THT get together exceeds expectations in prototyping and specialized mechanical applications requiring vigorous connections.
Understanding Surface Mount Technology vs Through-Hole Technology
Surface Mount Innovation revolutionized electronic fabricating by setting components straightforwardly onto circuit board surfaces. This approach dispenses with the require for boring gaps, permitting producers to accomplish higher component thickness and quicker generation speeds. Through-Hole Innovation, the conventional get together strategy, requires components with leads that pass through penetrated gaps in the PCB. Whereas this makes more grounded mechanical bonds, it requests more preparing time and limits board space utilization.
The fundamental difference lies in component mounting methodology:
- Component placement approach - surface versus insertion
- Soldering process - reflow oven versus wave soldering
- Board preparation requirements - minimal versus extensive drilling
Modern electronic fabricating offices frequently utilize both through-hole and surface-mount advances inside single ventures to optimize execution, unwavering quality, and generation effectiveness. Surface Mount Innovation (SMT) is especially profitable for compact plans with tall component thickness, empowering littler, lighter, and more energy-efficient gadgets. By permitting exact situation of little components on both sides of the PCB, SMT diminishes flag obstructions and moves forward warm administration. Combined with progressed robotized get together gear, SMT underpins quick generation cycles, steady quality, and adaptability, making it perfect for applications in car gadgets, restorative gadgets, broadcast communications, and buyer gadgets where space, execution, and unwavering quality are critical.
Efficiency Comparison: Production Speed and Automation
Manufacturing efficiency varies significantly between these assembly methods. SMT assembly achieves remarkable speed advantages through automated pick and place machines, capable of placing 50,000+ components per hour on modern SMT lines.
THT assembly relies heavily on manual insertion for complex components, limiting production rates to approximately 1,000-3,000 components per hour. However, automated insertion equipment exists for standard through-hole components, improving efficiency substantially, especially when combined with professional SMT Assembly Services for surface-mount devices.
Key efficiency metrics demonstrate clear differences:
- Setup time: SMT requires 2-4 hours, THT needs 6-8 hours
- Component placement speed: SMT achieves 0.07 seconds per component, THT requires 2-5 seconds
- Board handling: SMT processes both sides simultaneously, THT typically handles single-side mounting
Assembly testing uncovers SMT forms total commonplace sheets 70% speedier than comparable THT builds. The robotized gathering capabilities of Surface Mount Innovation empower steady quality review through inline review systems. If you require quick prototyping or high-volume generation with tight due dates, at that point SMT get together conveys prevalent fabricating productivity for your extend timeline.
By empowering exact, computerized situation of components onto PCBs, SMT minimizes human mistake, decreases gathering time, and bolsters high-density circuit formats. This approach permits producers to scale generation rapidly whereas keeping up reliable quality over units. Perfect for businesses such as car, therapeutic gadgets, customer hardware, and broadcast communications, SMT gathering guarantees that ventures meet forceful plans, accomplish tall unwavering quality guidelines, and oblige complex plans without compromising execution or durability.
Quality Analysis: Precision and Reliability Factors
Quality results depend intensely on component mounting exactness and fastening handle control. SMT gathering accomplishes situation exactness inside ±0.05mm utilizing progressed choose and put machines, guaranteeing reliable electrical connections. THT gathering gives prevalent mechanical quality, withstanding vibration and warm push way better than surface-mounted options. The physical component leads make strong associations perfect for unforgiving working environments.
Defect detection capabilities vary between methods:
- SMT enables comprehensive X-ray inspection for hidden solder joints
- THT allows visual inspection of component lead insertion quality

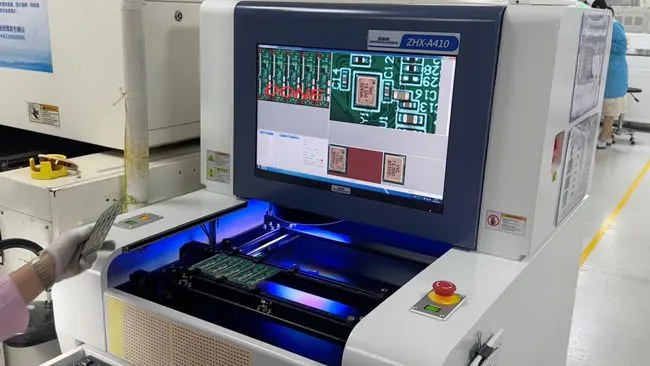

- Automated optical inspection (AOI) works effectively with both technologies
Production abdicate measurements appear SMT accomplishing 99.5% first-pass victory rates in controlled situations, whereas THT ordinarily comes to 97-98% depending on component complexity. The reflow stove prepare in SMT gives uniform warming, diminishing warm stretch on electronic components. Solder glue application in SMT makes steady joint arrangements, guaranteeing uniform patch scope and lessening the probability of surrenders. In differentiate, THT wave patching can deliver shifting filet sizes, expanding the hazard of conflicting associations and potential revamp.
If you require exact component arrangement with negligible adjust prerequisites, at that point SMT gathering offers predominant quality control for your fabricating measures. By combining mechanized arrangement with fastidious assessment forms, SMT get together improves unwavering quality, bolsters high-density formats, makes strides warm administration, and guarantees that indeed complex PCB plans meet rigid industry prerequisites for execution and durability.
Cost Structure Breakdown: Investment and Operational Expenses
Cost analysis reveals significant differences between assembly methods across various production volumes. SMT assembly requires higher initial equipment investment but delivers lower per-unit costs through automation and material savings.
Component pricing favors SMT packages, typically costing 20-40% less than equivalent through-hole versions. This cost advantage stems from smaller package sizes and simplified manufacturing processes for chip placement, further enhanced by professional SMT Assembly Services that optimize production efficiency and accuracy.
Operational expense comparison shows distinct patterns:
- Labor costs: SMT requires 60% fewer operators per production line
- Material usage: SMT consumes 30% less PCB space, reducing board costs
- Energy consumption: SMT assembly lines use 25% less power per unit produced
Setup costs contrast significantly based on generation prerequisites. SMT lines request $500K-2M beginning venture, whereas fundamental THT get together requires $50K-200K for gear setup. Break-even examination demonstrates SMT gets to be cost-effective over 10,000 units every year for most item categories. Underneath this limit, THT get together frequently gives way better fetched proficiency, especially for complex mechanical assemblies. If you require cost-effective arrangements for high-volume fabricating, at that point SMT get together conveys prevalent long-term esteem through diminished operational costs and fabric optimization.
Application Scenarios: Choosing the Right Technology
Industry applications guide technology selection based on specific performance requirements and environmental conditions. Consumer electronics overwhelmingly favor SMT assembly for compact designs and cost optimization.
Automotive electronics utilize mixed assembly approaches, employing SMT for control modules and THT for power components requiring robust mechanical connections. Medical devices often combine both technologies within single assemblies, leveraging professional SMT Assembly Services to ensure precision, reliability, and compliance with industry standards.
Application-specific considerations include:
- Operating environment - temperature, vibration, humidity exposure
- Size constraints - board space limitations and component density requirements
- Power handling - current capacity and thermal dissipation needs
- Serviceability - field replacement and repair accessibility
Industrial control frameworks regularly indicate THT for basic security components whereas utilizing SMT for flag preparing circuits. The fastening handle toughness gets to be vital in unforgiving fabricating environments. Communication gear producers ordinarily incline toward SMT for high-frequency applications due to shorter electrical ways and diminished parasitic impacts. Component mounting accuracy specifically impacts flag judgment in these applications. If you require ruggedized gadgets for mechanical applications, at that point THT get together gives prevalent mechanical unwavering quality for your operational requirements.
Conclusion
The choice between SMT Assembly Services and THT assembly depends on specific project requirements including volume, cost constraints, and application environment. SMT assembly excels in high-volume production with superior efficiency and cost-effectiveness, while THT provides enhanced mechanical reliability for demanding applications. Understanding these fundamental differences enables informed decision-making for optimal manufacturing outcomes. Modern electronic products often benefit from hybrid approaches, leveraging each technology's strengths within single assemblies.
Ring PCB's Advanced SMT Assembly Services: Your Trusted Manufacturing Partner

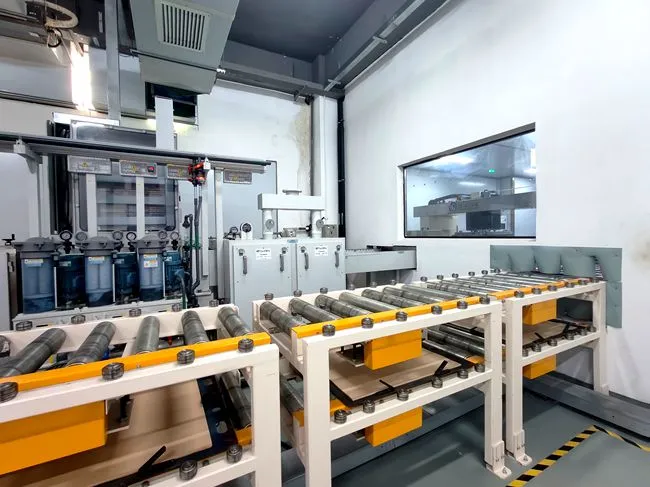

Ring PCB delivers comprehensive SMT assembly services through advanced manufacturing capabilities and rigorous quality control processes. Our self-owned facility features state-of-the-art equipment including LDI laser exposure systems and vacuum lamination technology.
Our integrated PCBA services encompass PCB fabrication, component sourcing, automated assembly, and functional testing. The DFM/DFA optimization process reduces design risks while minimizing BOM costs through expert engineering support.
Quality assurance excellence defines our manufacturing approach:
- Triple quality testing - AOI, impedance verification, thermal cycling validation
- Defect rate achievement - <0.2% compared to industry average of <1%
- Global certifications - ISO9001, IATF16949, and RoHS compliance
- Advanced inspection - X-ray analysis and 100% functional validation
Our vertical integration strategy provides complete supply chain control from raw material procurement through final testing. This approach ensures consistent quality delivery while maintaining competitive pricing for both prototype and production volumes. Technical capabilities include handling 2-48 layer boards with blind/buried vias, achieving 3/3mil trace spacing, and maintaining ±7% impedance control. These specifications make our services ideal for 5G, medical devices, automotive electronics, and industrial control applications.
Leading SMT assembly services supplier Ring PCB combines decades of manufacturing expertise with cutting-edge technology. Our engineering team provides comprehensive DFM support, helping optimize designs for manufacturability while reducing production costs. Ready to optimize your next project with precision assembly solutions? Contact our engineering specialists at [email protected] to discuss your specific requirements and receive detailed manufacturing recommendations tailored to your application needs.
