Why Choose HDI PCB Assembly for Compact Devices?

HDI PCB Assembly is a revolutionary way for companies that make small electronics to meet performance requirements while also saving room. This advanced connection technology uses microvias, blind vias, and hidden vias to make circuit boards with more components than were possible with regular boards. As electronics keep getting smaller while also getting more useful, HDI assembly provides the miniaturization and signal integrity needed for current medical devices, communication equipment, consumer electronics, and vehicle systems. The technology helps buying managers and engineering teams get around common problems, making designs that need to be very reliable while still fitting into small spaces possible.

Understanding HDI PCB Assembly and Its Relevance to Compact Devices

The main way that HDI PCB Assembly is different from regular circuit board making is that it uses different building methods and materials. We see how this technology solves important problems that electronics makers face today at Ring PCB.

What Defines HDI Technology?

Microvias, which are laser-drilled holes that are usually 0.006 inches or smaller, are used on high-density connecting boards to connect layers without taking up important board space. Traditional through-hole vias go through the whole thickness of the board. Blind vias connect the outside layers to the inside layers, while hidden vias only connect the inside layers.

This layout lets routing rates be 40–60% higher than on regular PCBs, which lets designers fit more features into smaller spaces. The process starts with choosing the core material, then moves on to sequential lamination cycles, and ends with precisely placing components using advanced pick-and-place equipment that is set up to work with 01005 packages and flip-chip assemblies.

Assembly Process for Compact Applications

When we put together HDI boards, we follow stricter rules than when we put together regular PCBs. For solder paste application, template holes need to be smaller—often 0.004 inches or less—so that they can fit into small pad shapes. Before fixing a component, automated optical inspection tools check the amount of paste and how accurately it was placed. The reflow profile needs more precise temperature control, usually within ±3°C safety zones. This keeps tightly packed parts from being stressed by heat. X-ray imaging is used in post-reflow inspection to look at secret solder joints under ball grid arrays and other area-array packages. This makes sure that connections are solid, which can't be seen.

Space Optimization Benefits

These days' smartphones have HDI boards with eight to ten build-up layers. This allows circuit levels that support processors, memory modules, cameras, and wireless transceivers in devices that are less than 8mm thick. This technology is used in medical wearables to fit biosensors, power management circuits, and Bluetooth connection into shapes smaller than the face of a watch.

Automotive camera modules use HDI construction to fit image processing circuits, lens control mechanisms, and communication electronics into housings that have to be designed in a way that is aerodynamic. These examples show how HDI technology directly leads to new products that the market needs more and more of.

Advantages of HDI PCB Assembly Over Traditional PCB Assembly

When you switch from regular interconnect assembly to high-density interconnect assembly, you get measured performance benefits that affect both the power of the product and its total cost of ownership. HDI PCB Assembly allows for more compact designs, improved signal integrity, and higher performance, all while optimizing the overall cost-effectiveness of the product.

Electrical Performance Improvements

Due to shorter connecting lines and less parasitic inductance, HDI boards have better signal integrity. When compared to regular vias, microvias add about 70% less inductance, which is very important for keeping signal quality high in gigahertz-frequency uses. This electricity edge means that power will be distributed more efficiently, electromagnetic interference will be reduced, and high-speed data transfer will be better.

Communication equipment that works at 5G frequencies needs to be able to control impedance within a range of ±5%. This can be done with HDI stackup designs that keep signal lines as smooth as possible. With HDI construction, the number of layers can be cut down, which also lowers capacitive coupling between neighboring lines. This makes crosstalk performance better by 3–5dB in most designs.

Cost-Benefit Analysis Across Production Volumes

Initial development costs for HDI boards are usually 25–40% higher than normal PCB prices. This is because they have to be made in a special way and go through more steps in the process. This investment does, however, pay off in a number of ways. Cutting the size of the board lowers the cost of the materials used, which is important for large-scale production—a 30% size reduction directly lowers base costs by the same amount.

When dependability goes up, failure rates in the field go down. This cuts warranty costs and image risks. Ring PCB's work with clients who make electronics for cars shows that HDI assembly lowers the cost of each unit by 15 to 20 percent when production numbers go over 10,000 units per month. This makes up for the higher costs of prototypes during the product's lifecycle.

Real-World Application Success

A company that makes consumer goods worked with us to redesign their fitness tracker using HDI technology. This cut the size by 40% while adding GPS and heart-rate variability tracking. The standard eight-layer design was changed by a six-layer HDI board. This cut down on material costs and increased battery life by better distributing power. A company that makes industrial sensors switched to HDI PCB Assembly for their environmental tracking devices. They were able to fit wireless connection and local data processing onto a circular board with a diameter of 25mm, which isn't possible with traditional PCB technology. These case studies show how HDI assembly gives companies a competitive edge by making products more useful and setting them apart in the market.

Key Design Guidelines and Challenges in HDI PCB Assembly

To successfully use HDI technology, you need to pay attention to design issues and manufacturing limits that are different from how PCBs are usually made. HDI PCB Assembly requires careful consideration of factors like microvias, fine traces, and layer stacking to ensure optimal performance and manufacturability.

Balancing Density with Manufacturability

A good HDI design starts with a Design for Manufacturability study that checks how well the via structures, trace routes, and component spacing work with the ability to make the design. Before production starts at Ring PCB, our engineering team does full DFM studies to find any possible yield problems. Important things to think about are keeping the minimum circular rings around microvias (usually 0.002 inches) and making sure there is enough space between hidden vias and features next to them.

Designers have to find a balance between the need for maximum density and the realities of production. For example, defining 2mil traces with 2mil spacing may be possible in theory, but it can cause yield problems that 3mil geometries don't. Our LDI laser exposure systems and vacuum lamination tools support complex designs while keeping output consistent. However, the best performance and cost results come from the design and manufacturing teams working together.

Quality Control Requirements

During the whole production process, HDI PCB Assembly needs stricter checking rules. The width of the substrate dielectric is checked upon arrival to make sure it is within a 10% range, which is very important for impedance-controlled designs. In-process checks make sure that the registration between layers is correct, and that the alignment stays within 0.003 inches to avoid microvia errors. For testing after assembly, flying probe systems are used to get to fine-pitch test points and make sure there is electrical connection without using special test tools.

Our quality control system follows the rules set by IPC-6012 Class 3, which are suitable for medical devices and automotive uses where dependability needs go beyond those of consumer products. With this level of strictness, failure rates stay below 0.2%, which is much lower than the average for the business, which is around 1%.

Technological Advances Enhancing Reliability

New developments in HDI manufacturing solve problems from the past and make it possible to do more. Laser cutting technology can now make microvias as small as 0.004 inches in diameter, with better wall quality that lowers link resistance and raises current carrying capacity. Using advanced glue systems in sequential build-up processes makes them more thermally stable, which supports lead-free soldering profiles without the risk of delamination.

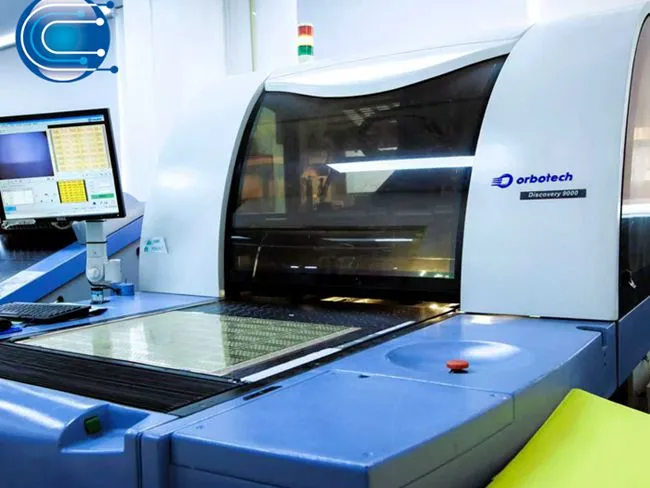

Automated optical inspection methods that use artificial intelligence can now find small flaws like missing microvia fill or marginal solder joins that weren't able to be found before. This makes the quality that goes out better. Ring PCB's investment in these cutting-edge manufacturing technologies makes sure that our clients get units that meet the strict needs of their small device uses.

Selecting the Right HDI PCB Assembly Partner for Your Compact Device Needs

Finding the right assembly partner is a big part of the success of a project. It affects everything from the time it takes to make a prototype to how big the production can get and how stable the supply chain will be in the long run. For projects involving complex designs, HDI PCB Assembly expertise ensures that the assembly process is efficient, scalable, and maintains high-quality standards.

Essential Qualification Criteria

Beyond price, procurement managers should look at possible partners in a number of other ways as well. Technical licenses are a good way to show that you are skilled and dedicated to quality systems. Ring PCB has ISO9001, IATF16949, and ISO13485 certifications, which show that we can work with industrial, car, and medical device uses. It's just as important to make sure that possible providers have the right laser drilling tools, sequential lamination presses, and fine-pitch assembly skills for your design.

Ask for process capability data that shows statistical control of important factors like microvia aspect ratios, impedance tolerance, and solder joint quality measures. Partners who own their own buildings give you better control over the supply chain because you don't have to rely on middlemen, who can cause delays and poor quality.

Service Model Considerations

Different service methods work best for different stages of a project and levels of production. Turnkey solutions that include making the PCB, buying the parts, putting it all together, and testing it make project management and responsibility easier. This is especially helpful for starts and small businesses that don't have the infrastructure to make electronics. This unified method lets one person be responsible for everything and often lowers overall costs by letting the seller handle supplies and buying in bulk.

When clients provide parts, consigned models work well for situations that need special vendor approvals or want to use current supply agreements. Ring PCB allows both methods, giving clients the freedom to choose the one that best fits their needs. Our three-shift sales and engineering coverage and 24/7 production plan make sure that we can communicate with you quickly, no matter what time zone you're in. This meets the needs of quick turns that are common in developing small devices.

Building Strategic Partnerships

Long-term ties with suppliers have benefits that go beyond single deals. Partners who work with you spend time and money to learn about your goods, markets, and technical problems. They then become an extension of your engineering team. This knowledge makes it possible to solve problems before they happen, by finding potential problems during design review instead of finding them during production. Lead times and shipping costs are cut when suppliers are close by or have good delivery networks.

This is especially important for prototypes that need to go through multiple design processes. References and reviews from customers can tell you a lot about how reliable a partner is and how well they do under pressure. We encourage potential clients to talk to our current customers who work in related fields to get an honest opinion on how quick we are, how consistent our quality is, and how well we can solve problems when things go wrong.

Future Trends and Strategic Insights in HDI PCB Assembly for Compact Devices

The HDI PCB Assembly technology environment is always changing because of the constant push for downsizing and new application needs that affect strategic sourcing decisions.

Emerging Technologies

The next version of HDI boards has more detailed features than the ones that are currently being made. Cutting-edge designs now call for 25µm traces with 25µm spacing and microvias less than 0.004 inches in diameter. This is getting close to the limits of traditional PCB manufacturing and blurring the lines between PCB and IC substrate technology. New substrate materials with low-loss dielectrics allow signal transfer above 30GHz, which helps new 5G and 6G communication systems.

Printing conductive lines and insulating layers is an example of additive manufacturing. It can be used for fast prototyping and making shapes that aren't possible with standard subtractive methods. Ring PCB keeps an eye on these changes and invests in new tools and processes to make sure we stay ahead of the curve in technology as industry needs change.

Supply Chain Agility Requirements

Consumer gadgets have short product lifecycles, and markets change quickly. This makes the supply chain more flexible, which is hard to do with traditional manufacturing models. Electronics companies now release changes to their products once a year or even twice a year, which shortens development timelines and puts more pressure on manufacturing partners.

This market prefers providers that can do fast prototyping (our expedited service provides prototype HDI assemblies within 5–7 days from design approval) and flexible production scaling that can adapt to changes in volume without having to make long-term capacity bookings. Vertical integration makes things more flexible; since you control the whole process, from making the PCBs to putting them together, you can quickly fix problems and make the process more efficient without having to wait for multiple providers to coordinate.

Competitive Differentiation Through Technology

As HDI assembly skills improve and spread, manufacturers gain more and more economic advantages by maximizing the technology's potential rather than just having access to it. Companies that add HDI features early in the product development process can create designs that make the most of the technology's features instead of just adapting current ones.

With this method, real innovation can happen, leading to goods that rivals can't match in terms of features, performance, or form factors. This learning curve is sped up by strategic partnerships with HDI assembly providers that offer strong technical support. During the idea creation phase, our engineering team works with clients to help them choose the right materials, optimize stackup, and make design trade-offs that maximize HDI benefits while keeping costs and risks low.

Conclusion

HDI PCB Assembly is now necessary for making small devices because it offers benefits in speed, dependability, and miniaturization that regular circuit boards can't match. The technology allows new products to be made that meet the market's needs for smaller, more powerful electronics in a wide range of fields, from consumer goods to medical devices. To make sure the adoption goes smoothly, you need to carefully choose your partners by looking at their technical skills, certifications, and willingness to work together.

This is because HDI requires very precise design and manufacturing. As technology keeps getting better and product lifecycles get shorter, having strategic relationships with experienced HDI assembly suppliers can give you a competitive edge through fast prototyping, flexible production scaling, and engineering support that helps you bring new ideas from the drawing board to mass production.

FAQ

Q1: What factors influence HDI assembly costs?

A: Cost structures are based on a number of factors, such as the number of layers, the density of microvias, the minimum size of features, and the output rate. Costs go up by the same amount for boards with sequential build-up layers and complex via designs because they need more steps to be made. Different types of materials have different prices. For example, specialized low-loss dielectrics cost more than regular FR4 plates. Volume has a big effect on how much each unit costs; setup costs that are spread out over bigger amounts lower unit prices. When going from prototype sizes to 1,000-unit production runs, costs usually drop by 30–40%.

Q2: How does HDI technology improve high-frequency performance?

A: Impedance irregularities that weaken high-frequency signals are kept to a minimum by shortening signal routes and lowering via inductance. When compared to regular through-hole vias, microvias have about 70% less parasitic inductance, which keeps the signal integrity at gigahertz frequencies. This electrical performance enables apps that work above 10GHz, like 5G communication systems and advanced radar modules, where the quality of the signal directly affects how the system works.

Q3: What are typical lead times for HDI assemblies?

A: Lead times depend on how complicated the job is and how much time the seller has available. Standard HDI boards with reasonable layer numbers usually take 10 to 15 business days to make and another 3 to 5 days to put together. When a project needs to be finished quickly, Ring PCB's expedited service can deliver prototype assemblies within 5 to 7 days. This is made possible by our production operations that are open 24 hours a day, seven days a week, and our ability to prioritize process management for important projects.

Partner with Ring PCB for Superior HDI PCB Assembly Solutions

Through our full HDI PCB Assembly services, Ring PCB Technology is ready to turn your ideas for small devices into goods that are ready for the market. We have been a trusted HDI PCB assembly maker since 2008, and our services include everything from making boards with 2 to 48 layers to assembling and testing them for you. Our solutions are priced cheaply because we use advanced manufacturing technologies and vertical integration, such as LDI laser exposure, vacuum lamination, and precise automated assembly.

This makes sure that our products are of the highest quality at the best possible price. The production plan that runs 24 hours a day, seven days a week, and continuous engineering support provide expedited service that far exceeds normal delivery times, speeding up your time-to-market edge. Our ISO9001, IATF16949, and ISO13485 certifications show that we are committed to quality standards that can be used in medical, commercial, and vehicle settings. Email our team at [email protected] to talk about your HDI assembly needs, ask for a DFM analysis, or get unique quotes that are made to fit the needs of your small device. Let us show you how our knowledge can help you come up with new products and make them successfully.
