Step-by-Step Guide to Ordering a Fast PCB Prototype

Ordering a fast PCB prototype involves several key steps: First, prepare your design files and specifications. Next, choose a reputable PCB manufacturer like Ring PCB that offers quick-turn services. Submit your design for a quote, reviewing DFM feedback if provided. Once approved, place your order and track its progress. Finally, receive your prototype for testing and validation. This streamlined process ensures rapid turnaround without compromising on quality.

Preparing Your Design for Fast PCB Prototyping

The foundation of a successful fast PCB prototype lies in thorough preparation. Begin by finalizing your schematic and PCB layout using industry-standard EDA software. Ensure your design adheres to manufacturing guidelines, paying close attention to trace widths, spacing, and layer stack-up. Double-check your component footprints and clearances to avoid potential issues during assembly.

Generate accurate Gerber files, which are the universal language of PCB fabrication. Include all necessary layers, such as copper, solder mask, and silkscreen. Don't forget to create a detailed Bill of Materials (BOM) listing all components, their values, and preferred manufacturers. This comprehensive approach will expedite the quoting process and minimize the risk of delays or errors during production.

Optimizing Design for Manufacturability (DFM)

To ensure your fast PCB prototype is manufacturable and cost-effective, consider Design for Manufacturability (DFM) principles. Simplify your design where possible, avoiding unnecessarily complex routing or excessive layer count. Standardize pad sizes and shapes to streamline the manufacturing process. Leave adequate clearance around board edges and mounting holes to prevent issues during fabrication and assembly.

Leverage the expertise of your chosen PCB manufacturer. Ring PCB's engineering team offers DFM optimization services, helping to reduce design risks and BOM costs. By addressing potential manufacturing challenges early in the process, you can significantly enhance the success rate of your fast PCB prototype and avoid time-consuming revisions.

Selecting the Right PCB Manufacturer for Rapid Prototyping

Choosing the appropriate PCB manufacturer is crucial for achieving a high-quality fast PCB prototype within your desired timeframe. Look for a partner with a proven track record in quick-turn prototyping services. Ring PCB, with its advanced engineering capabilities and self-owned manufacturing facility, is well-equipped to handle complex prototyping requirements.

Evaluate the manufacturer's technological capabilities. Ring PCB offers high-density stack-ups with up to 48 layers, blind and buried vias, and tight trace/spacing tolerances of 3/3mil. This advanced fabrication capability is ideal for prototyping cutting-edge designs for 5G, industrial control, medical devices, and automotive electronics.

Assessing Quality Control Measures

Rigorous quality control is paramount when selecting a PCB manufacturer for your fast prototype. Inquire about their inspection and testing procedures. Ring PCB implements a comprehensive quality assurance system, including AOI (Automated Optical Inspection), X-ray inspection, and 100% functional validation. Their triple quality assurance process, combining AOI, impedance testing, and thermal cycling, ensures a remarkably low defect rate of <0.2%, surpassing the industry average.

Additionally, verify the manufacturer's certifications. Ring PCB holds ISO9001 and IATF16949 certifications, demonstrating their commitment to quality management systems. RoHS compliance is also crucial for ensuring your prototypes meet global environmental standards.

Navigating the Fast PCB Prototype Ordering Process

Once you've prepared your design and selected a suitable manufacturer, it's time to initiate the ordering process. Start by submitting your design files and specifications through the manufacturer's online platform or via email. Ring PCB offers 24/7 online support to assist you throughout this process, ensuring a smooth and efficient experience.

After submitting your files, you'll receive a quote for your fast PCB prototype. Review this carefully, paying attention to pricing, lead times, and any additional services offered. If DFM feedback is provided, take the time to address any concerns or suggestions to optimize your design for manufacturing.

Tracking and Receiving Your Prototype

Upon placing your order, stay engaged with the production process. Many manufacturers, including Ring PCB, offer real-time tracking capabilities. This transparency allows you to monitor your prototype's progress through various stages of fabrication and testing.

When your fast PCB prototype arrives, conduct a thorough inspection. Check for any physical defects or inconsistencies with your design specifications. If you've opted for assembly services, verify component placement and soldering quality. Should any issues arise, don't hesitate to contact your manufacturer's support team for prompt resolution.

Conclusion

Ordering a fast PCB prototype doesn't have to be a daunting task. By meticulously preparing your design, selecting a capable manufacturer like Ring PCB, and actively engaging in the ordering process, you can ensure a smooth and efficient prototyping experience. Remember that the key to successful rapid prototyping lies in the balance between speed and quality – a balance that Ring PCB has mastered through years of experience and technological innovation.

With their advanced manufacturing capabilities, rigorous quality control, and commitment to customer satisfaction, Ring PCB stands ready to bring your PCB designs to life quickly and accurately. Whether you're working on cutting-edge 5G technology, precision medical devices, or innovative automotive electronics, their expertise in high-density, multi-layer boards with tight tolerances makes them an ideal partner for your prototyping needs.

FAQ

Q: What is the typical turnaround time for a fast PCB prototype?

A: Turnaround times can vary depending on complexity, but Ring PCB's fast-track service aims to deliver results much quicker than standard timelines.

Q: Can Ring PCB handle complex, multi-layer designs?

A: Yes, Ring PCB offers high-density stack-ups of up to 48 layers with advanced features like blind and buried vias.

Q: What quality control measures does Ring PCB employ?

A: Ring PCB uses a triple quality assurance process including AOI, impedance testing, and thermal cycling, resulting in a defect rate of <0.2%.

Experience Rapid PCB Prototyping Excellence with Ring PCB | Ring PCB

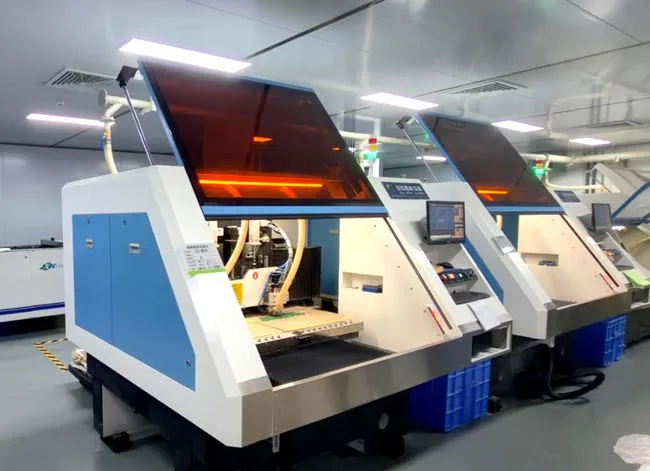

At Ring PCB, we've revolutionized the fast PCB prototype process, combining cutting-edge technology with unparalleled expertise. Our state-of-the-art factory, equipped with LDI laser exposure and flying probe testers, ensures precision and speed in every prototype. We offer comprehensive turnkey solutions, from PCB fabrication to component sourcing and assembly. With our vertical integration and full supply chain control, we guarantee quality and efficiency at every step. Ready to experience the future of PCB prototyping? Contact us at [email protected] and let's bring your innovations to life!
