Next-Gen EV Charging: Trends in High-Power PCBAs

For the electric car revolution to happen, charging stations need to be able to safely and efficiently produce power levels that have never been seen before. High Power PCBA technology has become the backbone of this change, allowing fast charging stations to handle currents of more than 500 amps while staying stable at high temperatures and working reliably. These specialized circuit board assemblies use high-tech materials, precise manufacturing, and smart design to handle the huge electricity needs of next-generation EV charging systems. They bridge the gap between what customers want and what is technically possible.

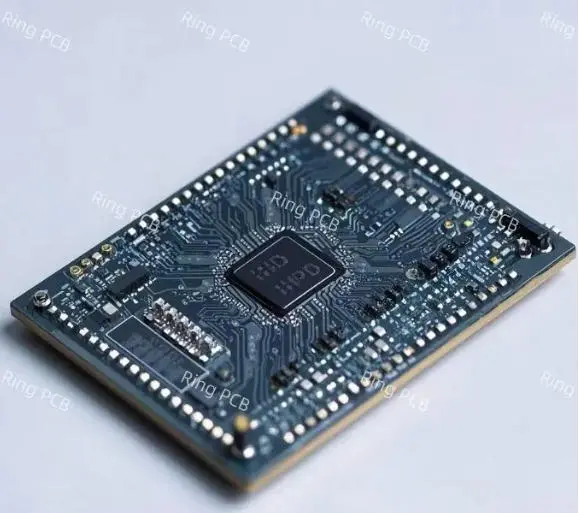

Understanding High-Power PCBAs in EV Charging

A High Power PCBA is the brains of EV charging equipment. It manages the complicated dance between electricity from the grid and the needs of the vehicle's battery. Unlike regular circuit boards found in household electronics, these systems have to be able to work continuously under high electrical stress and get rid of a lot of heat that is made when high-current power is converted.

Structural Foundations and Operational Principles

Strong power supply routes are at the heart of charging station High Power PCBA design. The conducting backbone is made up of heavy copper layers that are 3 to 6 ounces per square foot. This makes resistive losses much lower than with regular 1-ounce copper boards. This choice in building directly answers worries about voltage drop that could hurt charging efficiency or cause thermal failures in other ways. For power electronics, signal processing, and control circuitry that needs to fit into small spaces, multi-layer designs with 8 to 12 layers make it possible to place a lot of parts close together.

Power conversion steps in these systems change power from the AC grid into a regulated DC output that can be used to charge batteries. Older silicon-based switches have mostly been replaced by silicon carbide MOSFETs and gallium nitride transistors, which can work at higher rates with less switching loss. The High Power PCBA layout has to keep parasitic inductance as low as possible in high-speed switching loops while also making sure that sensitive control electronics have clean ground planes. This is the delicate balance that separates good designs from great ones.

Critical Design Principles Driving Performance

Managing heat is the most important thing to think about when designing something. Copper pours around power components make heat-spreading zones, and arrays of thermal vias move heat from devices that are placed on the surface of the board through its width to heatsinks or liquid cooling plates on the outside. The choice of materials is also very important. For example, high-Tg FR-4 boards keep their shape above 170°C, while polyimide and ceramic-filled laminates work at even higher temperatures.

To figure out trace width, you need to know both how much power it can carry and how much temperature it can handle. For example, the top layers of a 100-amp trace might need to be 10 mm wide and made of 3-ounce copper. However, designers often go beyond these minimums to add extra safety. The reinforced insulation between the high-voltage and low-voltage parts stays within the creepage and clearing lengths required by UL and IEC standards. This stops arc-overs that could hurt people or damage equipment.

Manufacturing Materials Enabling Next-Gen Performance

The power system of today depends on materials that weren't available ten years ago. Rogers 4350B and other low-loss laminates cut down on dielectric losses in high-frequency switching circuits. This makes the whole system more efficient by a few percentage points. Putting copper coins under power semiconductors makes specialized thermal paths, which lets devices work closer to their full values without worrying about stability. Conformal coatings and potting solutions keep parts safe from getting wet and the mechanical vibrations that are common in outdoor setups.

These important choices have a direct effect on decisions about what to buy. When engineering teams look at possible manufacturing partners, they need to make sure they can get the materials they need. This is especially important for specialty boards that regular PCB shops might not have in stock. False parts can get into supply lines, but quality paperwork that confirms the grade and origin of the material keeps them out.

Current and Emerging Trends Driving High-Power PCBA Innovation

Automakers are pushing the limits of battery technology, and customers want faster charging experiences. This means that the charging infrastructure scene is changing quickly. Traditional High Power PCBA designs are under more and more pressure because they can't do everything that younger designs can because they use new technology.

Overcoming Legacy Design Constraints

Older charging stations used aluminum-backed PCBs that didn't carry heat well, which limited the amount of power they could hold and made the casings bulky. There were problems with reliability because the solder joints got weaker after being heated and cooled many times, and sometimes not enough creepage distance caused high-voltage tracking failures. Because of these problems, the whole industry switched to better design methods that focus on failure mode analysis and faster life testing during the development stages.

In the past, makers had to use silicon IGBTs even though they didn't switch as well because they were easier to get. Wide bandgap semiconductors are being used a lot more quickly now that they are cheaper and easier to make in large quantities. This change allows for higher switching rates, which reduces the size of passive components. This saves space on the board and money on materials while also making the dynamic reaction better.

Advanced Thermal Management Strategies

Adding liquid cooling is a big change in the way thermal control is thought of. Direct liquid cooling plates that are placed on the backs of PCBs remove heat more efficiently than air convection, which lets power levels go over 50 watts per square inch. Microchannel designs improve the flow across important thermal zones, keeping joint temperatures within safe ranges even when peak power transfer lasts for a long time.

When there is a temporary overload, phase-change materials built into High Power PCBA stackups act as a temperature cushion. These materials soak up sudden increases in temperature that would normally cause safe shutdowns. This smooths out changes in temperature and makes the user experience better. Heat pipe systems move heat from areas with a lot of heat to areas with less heat. They do this by using the latent heat of vaporization to move heat very efficiently.

Substrate materials keep getting better. Aluminum nitride ceramic substrates have heat conductivity that is almost as good as pure copper while still being very good at insulating electricity. Cost concerns keep ceramic surfaces from being used in anything but the most high-end uses for now, but mass production and process improvements are slowly making them more economically viable.

Reliability Enhancement Through Rigorous Validation

Industrial-grade testing procedures now include more than just checking that something works. They also include screening for environmental stress and very fast life testing. Temperature cycling between -40°C and 125°C over a very large number of cycles finds hidden solder joint problems before they are released for production. Testing for humidity bias under high voltage stress finds possible rust paths that could weaken long-term dependability in tough outdoor settings.

Vibration and shock testing mimics the pressures of shipping and earthquakes, confirming the mechanical strength of the connections between components and the parts that hold them together. Power cycle tests go back and forth between full load and idle conditions, which are very different from steady-state operation in terms of the heat stress patterns that happen in real life. When manufacturers put money into thorough test programs, the failure rates of their assemblies in the field are less than 0.2%, which is a lot better than the industry average of around 1%.

Smart Features and IoT Integration

Modern charging station High Power PCBA designs have large networks of sensors that check voltage, current, temperature, and insulation resistance at many points in the circuit. This data is sent to cloud-based analytics platforms through wireless or Ethernet connections. This lets predictive maintenance algorithms find patterns of wear and tear before they lead to crashes. Remote firmware changes let you add features and fix bugs without having a worker come to your site, which cuts down on running costs by a large amount.

Real-time load sharing across multiple charging ports makes the best use of power based on what the car needs and the limits of the grid. Machine learning algorithms look at how resources were used in the past to plan where to put heat management resources. This makes reaction times faster when cars join. With these smart features, charging stations go from being passive devices that give power to being active assets that control the grid and can take part in demand response programs.

Comparing High-Power PCBAs: Making the Right Choice for EV Charging

When buying circuit board kits for charging infrastructure projects, procurement workers have to make hard choices. Knowing the differences between High Power PCBA types makes it easier to choose designs that meet the needs and performance goals of a particular application.

High-Power versus Alternative PCBA Categories

When making high-power modules for charging electric vehicles, current-carrying ability and thermal performance are the most important things that are thought about. Continuous currents of 50 to 500 amps and voltages up to 1000V DC are common for these boards. They need to be made of thick copper and have special features for managing heat. In the same charging station, low-power PCBAs that handle transmission and management work at milliamp current levels, focusing on signal integrity and component density instead.

High-frequency PCBAs are used in RF transmission modules and switching power sources. They manage impedance better and reduce electromagnetic emissions by carefully managing dielectric properties and trace geometries. High-frequency parts may be used in charging station designs, but most of the board area is used to solve problems that are very different from those in RF uses. By knowing these differences, you can avoid design mistakes that could hurt speed or make costs go up for no reason.

Performance Metrics Guiding Selection Decisions

Current density limits show the highest amount of current that can be sustained per unit of trace thickness. They are usually given in amps per millimeter. High-power designs keep current densities low so that temperature spikes stay below 10°C above ambient. This keeps the solder joint's stability over many years of use. The thermal resistance from the joint to the outdoor temperature measures how well heat is lost. Values below 5°C per watt mean that the thermal design is good.

Ratings for voltage isolation make sure that there is enough space between dangerous high-voltage circuits and low-voltage connections that users can access. These hurdles are legal and give you entry to the market after passing certification tests to IEC 62368-1 or UL 62368-1. Component derating techniques that say to operate below the highest rated parameters increase service life. During normal operation, quality-focused designs rarely go above 70% of the component's voltage or current ratings.

Cost-Performance Trade-offs Shaping Procurement Strategy

Premium materials and strict testing procedures raise the cost per unit, but they make the product much more reliable and cut down on guarantee claims. When a charging station fails in the field, it costs a lot to fix, replace parts, and fix the customer's trust. These costs easily outweigh any original savings from choosing cheaper High Power PCBA options. Life cycle cost analysis should look at products that are expected to last between 10 and 15 years, taking into account how much they cost to maintain and how often they need to be replaced.

Volume pricing systems reward orders of more than one item, but the costs of keeping stockpiles and the risk of items becoming obsolete must balance out lower unit prices. Strategic relationships with production providers can often get you better prices and first picks when parts are in short supply, which is very helpful when launch dates are tight. Finding the right balance between cost goals and quality standards is what sets successful buying strategies apart from penny-wise, pound-foolish methods that cause organizations to fail in ways that could have been avoided.

Manufacturer Evaluation Criteria

Technical approvals are the first step in separating producers who are skilled from those who are just trying to get there. IATF 16949 adds automotive-grade rigor that is especially useful for EV uses, while ISO 9001 quality management approval shows that processes are controlled in a planned way. UL certification proves that safety standards are met, and RoHS certification shows that you care about the environment by controlling banned substances.

When evaluating a manufacturing facility's ability, production rates, layer count limits, and minimum feature sizes are all looked at. For charging infrastructure projects, boards need to have 8–12 layers, copper weights of 3–6 ounces, and trace/space shapes as small as 5–5 mils. Not all PCB makers have the right tools to handle these standards. Qualifying suppliers stops manufacturing problems in the middle of a project if the first vendor choice doesn't work out.

Supply chain security and the ability to source parts are becoming more and more important factors in choosing a seller. Manufacturers who keep a store of parts and have established relationships with distributors are better able to handle distribution problems than those who buy on the spot market. Engineering support services, like DFM analysis and temperature modeling, are very useful because they find problems before they become production investments.

Sourcing and Procuring High-Power PCBAs for Your EV Charging Projects

To buy devices for charging stations, you need to know about the different manufacturing service models and the pros and cons of each. Strategic buying choices affect how long a project takes, how well it stays within budget, and how well the product does in the long run.

Custom Manufacturing and OEM Service Models

Custom production services give engineering teams full control over the design, letting them choose everything about the High Power PCBA building, from the substrate material to the components. This method works best for companies that already know a lot about design and want to stand out as much as possible. Manufacturers make things and put them together based on paperwork given by the client. The client is still responsible for making sure the plan is correct.

In OEM and ODM agreements, the manufacturing partner takes on a greater or lesser amount of design duty. In an OEM relationship, the manufacturer makes the product based on the customer's requirements and gives some feedback on the design. In an ODM relationship, the manufacturer uses their design skills to make products that meet performance standards. These collaborative methods shorten the time it takes to get a product to market for companies that don't have a lot of experience with power electronics. However, they only work if requirements and performance standards are clearly stated.

Order Quantities and Lead Time Considerations

For prototypes and small batches, the price per unit is usually higher because the setup costs are spread out over fewer units. For samples, the minimum order quantity is usually between 5 and 10 pieces. For test production runs, it rises to 50 to 100 units. Lead times for first orders are 3–4 weeks for manufacturing and 2–3 weeks for assembly, provided that all the parts are available.

When you make a lot of something, the setup costs are spread out over a lot of it, which is called economies of scale. Prices are usually set at three levels: 500, 1000, and 5000 units. Between levels, the cost of each unit drops by 20 to 40 percent. Blanket purchase orders that cover annual volume estimates get better prices and allow for flexible delivery by setting release dates that match consumption rates.

Overall project plans are often set by the wait times for parts, especially for power semiconductors and magnetic parts that need to be made to specific specifications. Strategic buyers order long-lead items early in the development process, taking on the risk of having too much inventory to make sure start dates are met. Manufacturers hold customer-owned parts in consignment inventory programs, which provide backup stock without affecting the balance sheet and smooth out production flow even when demand changes.

Pricing Structures and Quotation Processes

Clear price breaks separate material costs, manufacturing fees, assembly work costs, and testing costs. This lets buyers figure out what costs the most and look for ways to cut costs. To get accurate, comparable answers, requests for quotes should include full design paperwork, expected volumes, quality standards, and delivery plans.

The complexity of the design has a big impact on the price. The number of board layers, the weight of the copper, the minimum feature sizes, and the types of vias all affect the cost of production. Prices for assemblies are also affected by the number of parts placed, the type of box, and the gluing method used. Knowing how these costs relate to each other helps buyers choose between more complex designs and spending less.

Turnkey Solutions and a Sample Order Strategy

Full package services that include PCB manufacturing, buying parts, putting the board together, and testing make managing and holding vendors accountable easier. When problems happen, single-source duty stops people from pointing fingers, which speeds up the resolution process and keeps project plans safe. Turnkey companies use their buying power to get better prices on parts than smaller buyers could get on their own, which often covers the cost of the service by saving money on purchases.

Sample orders let you check the quality of the making and the usefulness of the design before committing to large-scale production. Asking for 10 to 20 trial units lets you test them thoroughly in a variety of environments and load conditions, finding possible problems while keeping the cost of fixing them low. Staged production ramps lower the risk; first, 100-unit builds make sure the process can be repeated, and then the number of units built grows to thousands.

Trusted Suppliers and Market Leaders in High-Power PCBAs for EV Charging

Choice of supplier has a big effect on product quality, development timelines, and where a company stands in the market. Finding manufacturing partners with the right mix of technical know-how and business dependability is the key to making charging infrastructure projects work. For projects involving High Power PCBA, it's especially important to work with suppliers who have the expertise in handling complex designs and ensuring the reliability of high-power components.

Certification Standards Validating Supplier Competence

ISO 9001 certification proves that a seller follows structured quality management practices in all of its activities. This standard sets out written steps for controlling the design, making sure the process works, fixing problems, and always getting better. While ISO 9001 provides basic assurance, IATF 16949 certification for the automotive industry requires even more strictness, including advanced product quality planning, production part approval processes, and statistical process control—all of which are directly applicable to EV charging electronics even though they are not technically automotive.

Through third-party testing and plant checks, UL recognition proves that a product meets safety standards. Manufacturers who are UL-certified have programs that keep an eye on them to make sure they keep up with safety standards. Following the rules for RoHS and REACH shows that you care about the environment by controlling certain substances, which is becoming more and more necessary to get products on the markets in Europe and North America. Buyers should ask for proof of certification and check the validity of the certificate through the records of the granting body, since fake certificates do get around.

Factory-Direct Partnership Advantages

When you work directly with manufacturers, you can avoid the markups and communication delays that come with multi-tier supply lines. Talking to production workers who will actually put together the parts gives engineers useful information that makes the parts easier to make and lowers the risk of defects. Factory visits let you see for yourself how well the equipment works, how the quality control system works, and how the workplace is set up. These are things that you can't see from a desk.

Asian companies that make electric vehicles (EVs) offer great deals by mixing low prices with advanced technology honed for the world's biggest EV market. Concerns about communication and time zone differences have mostly gone away since companies hire sales teams that speak English and use joint tools that let people work together and talk to each other in real time. Cultural knowledge and investing in relationships lead to partnerships that offer solid performance throughout the lifecycle of a product.

Establishing Productive Long-Term Relationships

Relationships with suppliers that work well go beyond simple transactions and turn into partnerships where both parties are invested in the success of the other. Regular communication that goes beyond instant orders helps people understand the roadmap's goals and the planning needs for capacity. Sharing demand estimates lets producers set aside capacity and make sure that customers get the parts they need when the market is down.

Joint development projects that use both the manufacturer's process knowledge and the customer's application knowledge lead to better designs that neither party could have made on their own. Continuous growth programs consistently lower costs and raise quality over the life of a product, with partners sharing the benefits fairly. Working together in this way requires dedication and trust, but it offers benefits that separate relationships can't match.

Conclusion

For electric vehicles to become more popular, charging stations must be able to meet customers' high standards for speed and dependability. High Power PCBA are the technology that makes this infrastructure possible. They handle huge electricity demands by using complex design and precise manufacturing. When choosing a supplier, procurement experts need to look at technical skills, certifications, and the possibility of forming a relationship in order to find makers who can provide the quality and speed that competitive charging solutions need. Moving from older designs to newer ones that use better materials, smarter features, and more thorough testing shows that the industry is developing quickly to support large-scale electric transportation.

FAQ

Q1: What distinguishes high-power PCBAs from standard circuit boards?

A: Heavy copper layers (usually between 3 and 6 ounces per square foot) are used in high-power assemblies instead of the normal 1 ounce per square foot. This lets them carry hundreds of amps constantly without getting too hot. Copper pours, thermal via arrays, and heat-resistant surfaces approved for use above 170°C are some of the advanced thermal management features on these boards.

Q2: How do I evaluate manufacturer qualifications for EV charging PCBAs?

A: Instead of just believing what the seller says, verification should start with proof of certifications like ISO 9001, IATF 16949, UL recognition, and RoHS compliance, which can be checked through the records of the granting authority. As part of the technical capability assessment, the layer count limit, copper weight choices, minimum feature sizes, and the level of complexity of the production tools are all looked at.

Q3: What lead times should I expect for high-power PCBA projects?

A: For prototype sales, it usually takes 3–4 weeks to make the PCB and another 2–3 weeks to put it all together, given that all the parts are available. Getting the parts often sets the general schedule, especially for power semiconductors with plant wait times of 12 to 16 weeks. The per-unit cycle time for production orders goes down when the process is optimized, but the standard durations for setup needs stay the same.

Partner with Ring PCB for Your High-Power PCBA Manufacturing Needs

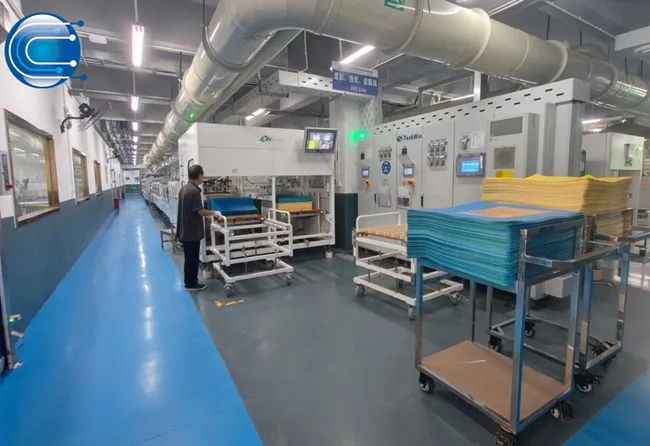

Charging infrastructure projects need production partners who are technically skilled, offer quick service, and have a history of being reliable. Ring PCB Technology Co., Limited has been making precise circuit board assemblies for 18 years, working with customers in the industrial control and car electronics industries. Our 10,000-square-meter building, which we own, gives us full control over the entire production process, from getting the raw materials to making sure the finished product works. This means we don't have to rely on subcontractors, which can hurt quality and make it harder to plan ahead.

Our technical skills allow us to make 2-48-layer PCBs out of heavy copper (up to 6 ounces), which meets the strict electrical needs of high-current charging uses. Precision is getting closer to semiconductor manufacturing standards thanks to new tools like LDI laser direct imaging systems, vacuum lamination presses, and flying probe tests. We keep the ±7% impedance control that is needed for high-frequency switching circuits while getting the 3/3 mil trace and spacing shapes that make the most of route density.

As a reliable High Power PCBA provider, we provide full total solutions that include making PCBs, finding parts, putting them together using SMT, and building boxes. This all-around method makes managing vendors easier and makes sure that everyone is responsible for quality from start to finish. Our competitive price, which comes from our vertical integration and efficient operations, gives you great value without sacrificing the dependability your charging infrastructure needs. Get in touch with us at [email protected] to talk about your High Power PCBA needs.
