The SMT PCB Assembly Process: A Comprehensive Overview

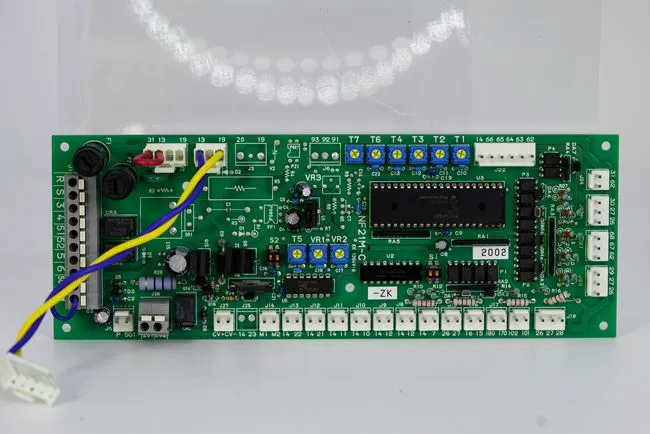

The SMT PCB Assembly process is a sophisticated sequence of steps that transform a bare PCB into a fully functional electronic assembly. Understanding this process is essential for anyone involved in electronics manufacturing or product development.
Solder Paste Application
The first step in SMT PCB Assembly is the application of solder paste to the PCB. This process, known as stencil printing, uses a metal stencil with precisely cut openings that correspond to the component pads on the PCB. A squeegee is used to push solder paste through these openings, depositing it onto the board in exact quantities and locations. The accuracy of this step is crucial, as it directly impacts the quality of component placement and soldering.
Component Placement
Once the solder paste is appliedin SMT PCB Assembly, the next phase is component placement. This is typically done using advanced pick-and-place machines that can handle a wide variety of component types and sizes. These machines use computer vision systems and precise robotic arms to pick up components from reels or trays and place them accurately on the PCB. Modern pick-and-place machines can place thousands of components per hour with exceptional accuracy, often within fractions of a millimeter.
Reflow Soldering
After component placement, the PCB assembly goes through reflow soldering. In this process, the entire board is heated in a reflow oven with a carefully controlled temperature profile. As the temperature rises, the solder paste melts, forming reliable electrical and mechanical connections between the components and the PCB. The temperature profile typically includes several stages: preheat, thermal soak, reflow, and cooling. Each stage is critical for ensuring proper solder joint formation and preventing damage to components.
Inspection and Testing
The final stages of SMT PCB Assembly involve thorough inspection and testing. Automated optical inspection (AOI) systems are often used to check for issues such as misaligned components, solder bridges, or missing parts. X-ray inspection may be employed for inspecting hidden solder joints in ball grid array (BGA) components. Functional testing is then performed to ensure the assembled PCB operates as intended. This may include in-circuit testing, boundary scan testing, or full functional tests depending on the complexity of the board and the requirements of the end application.
Advantages of SMT PCB Assembly in Modern Electronics
SMT PCB Assembly has become the dominant technology in electronics manufacturing, offering a multitude of advantages over traditional through-hole assembly methods. These benefits have revolutionized the electronics industry, enabling the production of more compact, efficient, and reliable devices.
Miniaturization and Increased Component Density
One of the most significant advantages of SMT PCB Assembly is its ability to support miniaturization. Surface mount components are generally much smaller than their through-hole counterparts, allowing for higher component density on PCBs. This capability has been instrumental in the development of compact electronic devices such as smartphones, wearables, and IoT devices. SMT technology enables the placement of components on both sides of the PCB, further increasing the potential for miniaturization and complex circuit designs.
Enhanced Electrical Performance
SMT components typically have shorter lead lengths and smaller parasitic capacitances and inductances compared to through-hole components. This characteristic results in improved electrical performance, especially in high-frequency applications. The reduced lead lengths minimize signal path lengths, reducing signal propagation delays and improving signal integrity. These factors make SMT PCB Assembly particularly advantageous for applications in telecommunications, high-speed computing, and RF devices.
Improved Mechanical Performance
Surface mount components are generally more resistant to mechanical shocks and vibrations than through-hole components. This is due to their lower profile and the way they are attached to the PCB surface. The improved mechanical performance makes SMT assemblies ideal for use in automotive, aerospace, and portable consumer electronics applications where resistance to physical stress is crucial.
Cost-Effectiveness in Production
While the initial setup costs for SMT PCB Assembly can be higher than those for through-hole assembly, it often proves more cost-effective in the long run, especially for medium to high-volume production. The automated nature of SMT assembly allows for faster production speeds and reduced labor costs. Additionally, the smaller component sizes and reduced need for PCB drilling result in material cost savings. The ability to place components on both sides of the board also allows for more efficient use of PCB real estate, potentially reducing the overall board size and cost.
Cost Considerations and Optimization Strategies for SMT PCB Assembly
Understanding the cost factors involved in SMT PCB Assembly is crucial for both manufacturers and product developers. While SMT generally offers cost advantages, especially in volume production, several factors can significantly impact the overall cost of assembly.
Component Selection and Availability
The choice of components plays a significant role in determining the cost of SMT PCB Assembly. Using standard, widely available components can help reduce costs and minimize potential supply chain disruptions. Custom or specialized components, while sometimes necessary, can increase both component and assembly costs. It's also important to consider the package types of components; some package types may be more expensive to source or require specialized equipment for placement and soldering.
PCB Design Optimization
The design of the PCB itself can have a substantial impact on assembly costs. Optimizing the PCB layout for SMT PCB Assembly can improve efficiency and reduce the likelihood of errors during production. This includes considerations such as component spacing, orientation, and pad design. Designing for manufacturability (DFM) principles should be applied to ensure that the board can be efficiently assembled using standard SMT processes. Additionally, minimizing the number of different component types and sizes can help streamline the assembly process and reduce setup times.
Production Volume Considerations
The volume of production is a critical factor in determining the cost-effectiveness of SMT PCB Assembly. For high-volume production, the initial setup costs are spread over a larger number of units, resulting in lower per-unit costs. However, for low-volume or prototype runs, the setup costs can have a more significant impact on the overall cost. In such cases, it may be worth exploring flexible manufacturing options or considering a mix of SMT and through-hole technologies to optimize costs.
Quality Control and Testing Strategies
Implementing effective quality control and testing strategies is essential for minimizing rework and ensuring high-quality outputs. While thorough testing can increase upfront costs, it can significantly reduce long-term expenses associated with field failures or customer returns. The choice of inspection and testing methods should be balanced against the complexity of the board and the requirements of the end application. For instance, while automated optical inspection may be sufficient for simpler boards, more complex assemblies might require additional methods such as X-ray inspection or in-circuit testing.
Conclusion
SMT PCB Assembly has revolutionized the electronics manufacturing industry, offering unparalleled advantages in terms of miniaturization, performance, and cost-effectiveness. The process, from solder paste application to final testing, requires precision and expertise to achieve optimal results. As technology continues to advance, SMT assembly techniques are likely to evolve further, enabling even more compact and sophisticated electronic devices. For manufacturers and product developers, understanding the intricacies of SMT PCB Assembly and its cost considerations is crucial for staying competitive in the rapidly evolving electronics market.
FAQ
What is the main difference between SMT and through-hole assembly?
SMT components are mounted directly on the PCB surface, while through-hole components have leads inserted through holes in the board.
Can SMT and through-hole technologies be used on the same board?
Yes, mixed technology boards are common, especially when certain components are only available in through-hole packages.
What are the typical component sizes used in SMT assembly?
Common SMT component sizes include 0201, 0402, 0603, and 0805, with the trend moving towards even smaller sizes like 01005.
